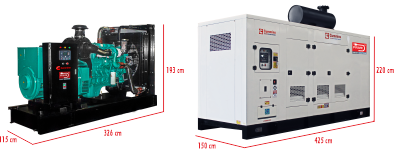

PR500-2C
Diesel Generating Set
500KVA / 50Hz / 1500 rpm
ENGINE DATA
Label 1Label 2
Make / ModelCummins / KTA19-G3A
Cylinder / Arrangement6 / Inline
Displacement18.9 L
Bore and Stroke159mm x 195 mm
Compression Ratio13.9:1
Rated Prime KWe400
Rated RPM1500 RPM
Frequency Regulation, Steady State≤1%
GovernorElectronic Speed Control w/ Actuator
ENGINE DATA (CONT'D)
Exhaust Gas Flow1240 L/s
Exhaust Temperature473 °C
Max Allowable Back Pressure10 Kpa
Fuel Consumption 100% of Prime Rating111 L/hr
Total Oil Capacity w/ Filters50 L
Engine Air Flow549 L/s
Radiator and Engine Water Capacity 61 L
Max Water Temperature 104 °C
GENERATOR DATA
MakeStamford / Leroy Somer
Number of Phase3
Cos Phi0.8
Pole4
CouplingSingle Bearing
Exciter TypeBrushless
Insulation Class / Temperature RiseH / H
IP RatingIP23
AVRIncluded
CONTROL PANEL
MakeDeep Sea/ ComAp/ Similar
Engine ParametersOil Pressure, Water Temperature, RPM
Generator ParametersFrequency, Voltage, Ampere, Cos Phi
ProtectionLow Oil Pressure, High Water Temperature, Over-Under Speed,
0Over-Under Frequency, Over-Under Voltage, Over Current
Other FeaturesEmergency Stop, Hour Counter, AMF
* Due to continuous product improvements, specifications might change without prior notice
** For best results, please contact your nearest PRIME® Generating Set dealer for consultations
