Label 1	Label 2

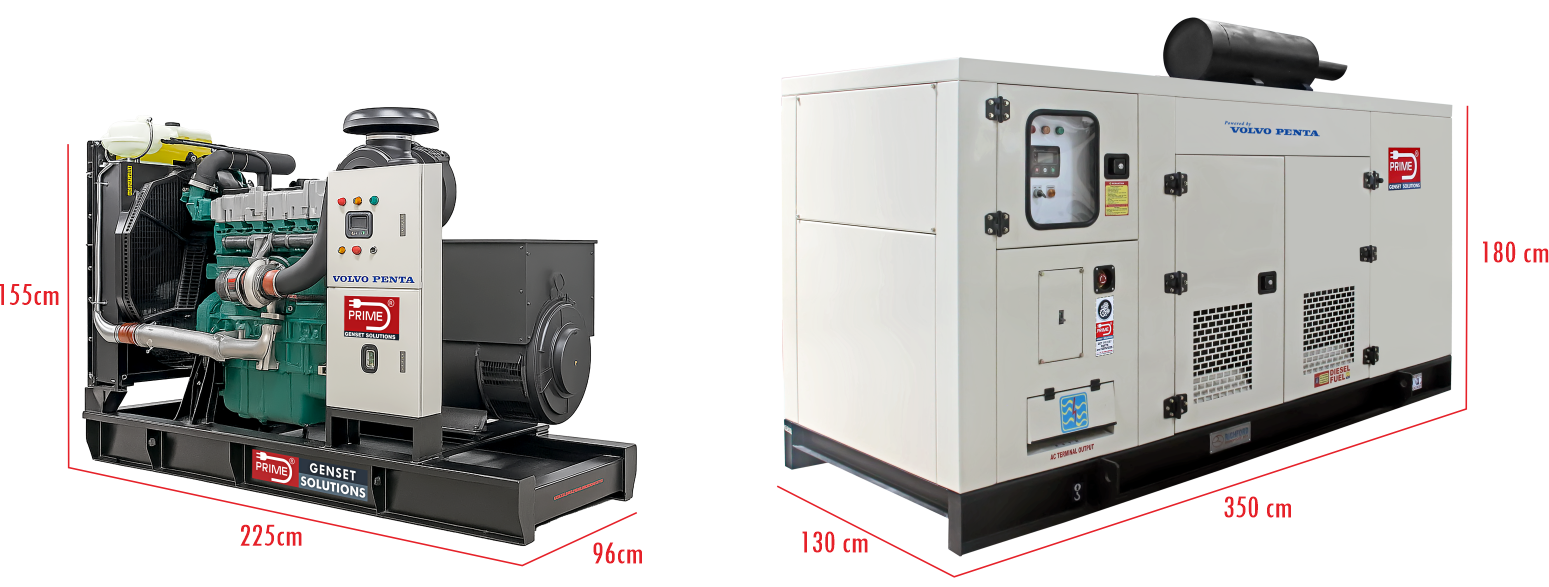

Make / Model	Volvo Penta / TAD841GE
Cylinder / Arrangement	6 / Inline
Displacement	7.15 L
Bore and Stroke	108 mm x 130 mm
Compression Ratio	17.0 : 1
Rated Prime KWe	202
Rated RPM	1500 RPM
Frequency Regulation, Steady State	≤1%
Governor	Electronic with ECU
ENGINE DATA (CONT'D)
Exhaust Gas Flow	33.0 m3/min
Exhaust Temperature	495 °C
Max Allowable Back Pressure	3 kPa
Fuel Consumption 100% of Prime Rating	55 L / h
Total Oil Capacity w/ Filters	27 L
Engine Air Flow	569 cfm
Radiator and Engine Water Capacity	34 L
Max Water Temperature	103 °C
GENERATOR DATA
Make
Number of Phase	Stamford / Leroy Somer
Cos Phi	3
Pole	0.8
Coupling	4
Exciter Type	Single Bearing
Insulation Class / Temperature Rise	Brushless
IP Rating	H / H
AVR	IP23
CONTROL PANEL
Make	Deep Sea/ ComAp/ Similar
Engine Parameters	Oil Pressure, Water Temperature, RPM
Generator Parameters	Frequency, Voltage, Ampere, Cos Phi
Protection	Low Oil Pressure, High Water Temperature, Over-Under Speed,
0	Over-Under Frequency, Over-Under Voltage, Over Current
Other Features	Emergency Stop, Hour Counter, AMF

* Due to continuous product improvements, specifications might change without prior notice
** For best results, please contact your nearest PRIME® Generating Set dealer for consultations
